6 cores SC MM 900um LSZH fiber optic PIGTAIL

FOB Reference Price:Get Latest Price
$0.713 - $11.25 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Lulink/OEM
Model Number:
LK04SC206
connector:
LC,FC,SC,ST,DIN,MTRJ,MU
Type:
SC MM fiber optic PIGTAIL
Jacket:
LSZH
fiber mode:
SM or MM
Cable diameter:
0.9mm
Insertion loss::
<0.3dB <0.3dB
Return loss::
≥50dB
Operating Temperature::
-40 to +75°C
Storage Temperature::
-40 to +85°C
Repeatability::
≤0.1
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
PEbag,blister packing or OEM Packing.
Port
Guangzhou/Shenzhen

6Cores  SC MM 900um LSZH fiber optic PIGTAIL



Fiber pigtail is a piece of fiber optic cable with only one fiber optic connector on one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various types of fiber optic terminations such as SC, FC, ST, LC, MU, MT-RJ, MTP, MPO, etc.
Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. Most commonly used types are SC fiber optic pigtail, ST fiber optic pigtail, FC fiber optic pigtail, LC fiber optic pigtail, MT-RJ fiber optic pigtail, SC/APC fiber optic pigtail, FC/APC fiber optic pigtail and E2000 fiber optic

Features

-With a break-out kit at the junction of fibers

-Low insertion loss

-High return loss

-High temperature stability

-High interchangeability

-Simplex and duplex are available

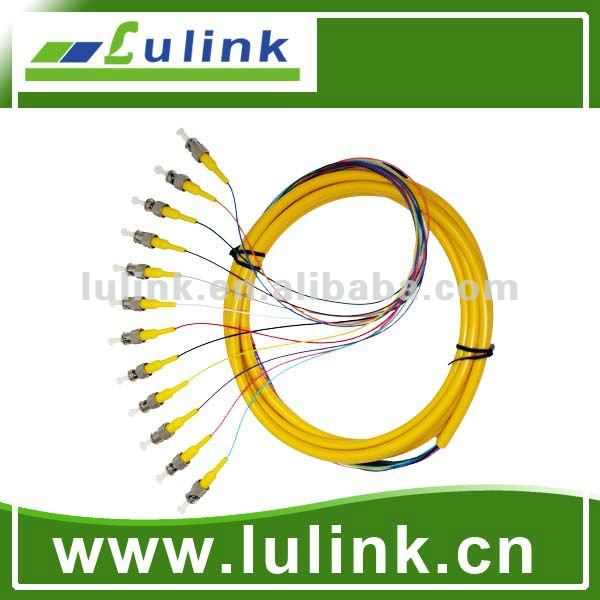

Fiber Optic Pigtail Detail

4, 6, 8, 12, 24, 48 Fibers optional
with a fan out kit at the junction of fibers
the fiber is flat type.
Applicable Connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0. 9mm, Φ2. 0mm, Φ3. 0mm



Optional Buying

Item

Description:

Remarks

SC - SC

Fiber optic patch cored are both ends joint SC square mouth

Fiber lengths optional

LC -FC

End is LC mouth, another end is FC round mouth

Fiber lengths optional

SC - FC

End is SC square mouth, another end is FC round mouth

Fiber lengths optional

SC - LC

End is SC square mouth, another end is LC small round mouth

Fiber lengths optional





fiber optic FO pigtail



Description:

Features:

---Low insertion and back reflection loss

---Good exchangeability

---Good durability

---High temperature stability

---Standard: Telcordia GR-326-CORE



Applications:

CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installation; Wide Area Networks



Parameter table:

                          Single mode                Multimode

Insertion loss:              <0.3dB                     <0.3dB

Return loss:               ≥50dB

 ≥60dB(APC)

Repeatability:                ≤0.1

Durability:                  ≤0.1dB typical change,1000 mating

Interchangeability:           ≤0.2dB

Operating Temperature:       -40 to +80°C



Ordering Choices

Fan-out patch cord

Simplex/Duplex patch cord

Pigtails

SC/ PC APC  SC /PC SM  SC /PC MM

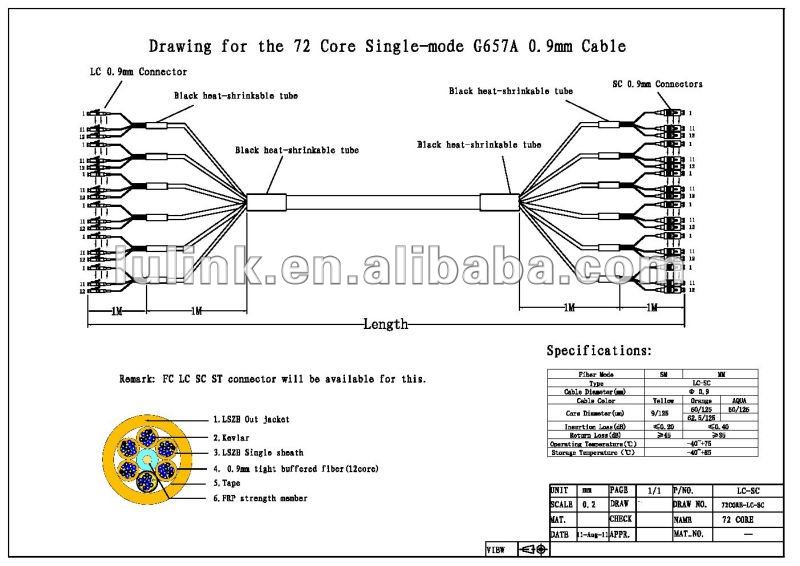

Drawing:
