China UTP Cat5 Network Cable Solid networking lan cable

FOB Reference Price:Get Latest Price
$35.00 - $55.00 / Box | 200 Box/Boxes (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
lulink
Model Number:
LK-U5CB241
Number of Conductors:
8
Type:
Cat 5
Conductor:
Class 1 solid plain copper(24AWG)
Conductor Diameter:
0.50
Insulation:
HDPE (1.02+/-0.05mm)
Screen 1:
Mylar Tape
Screen 2:
AL
Drain Wire:
Tinned Copper
Jacket:
Polyvinyl Chloride(0.5mm thickness)
Overall Diameter:
6.0+/-0.2mm
Nominal Weight:
13.5kgs/305m
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton/customer requirement
Port
guangzhou/shenzhen

  China UTP Cat5 Network Cable Solid



#Specification
*Conductor: Class 1 solid plain copper(24AWG)
*Insulation: HDPE(1.02+/-0.05mm)
*Screen 1: Mylar Tape
*Screen 2: AL Foil
*Drain Wire: Tinned Copper
*Jacket: PVC(0.5mm thickness)
*Overall Diameter: 6.0+/-0.2mm
*Nominal Weight: 13.5kgs/305m

#Electrical Characteristics

Max. Conductor Resistance: 9.2Ω /100mMin. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.4%Min. Propagation Velocity: 0.62C m/s
Min. Conductor Elongation: 20%Characteristic Impedance: 100± 15Ω
Min. Insulation Resistance: 7000MΩ /km
Frequency
MHz
Attenuation
dB/100m
NEXT
dB
PS-NEXT
dB
RL
dB
ELFEXT
dB
PS-ELFEXT
dB

12.065.362.320.064.061.0
44.156.353.323.052.049.0
85.851.848.824.545.942.9
106.550.347.325.044.041.0
168.247.244.425.039.936.9
209.345.842.825.038.035.0
2510.444.341.324.335.833.0
31.2511.742.939.923.634.131.1
62.5017.038.435.421.528.125.1
10022.035.332.320.124.021.0

#Application

Category 5E Cable(Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling For computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet).

#Standard

SO/IEC11801, TIA/EIA-568-B. 2



Packaging



IEEE 1394 CABLE PACKAGEIEEE 1394 CABLE PACKAGE2



Shipping & Payment



Shipping Way 1__

Payment Term

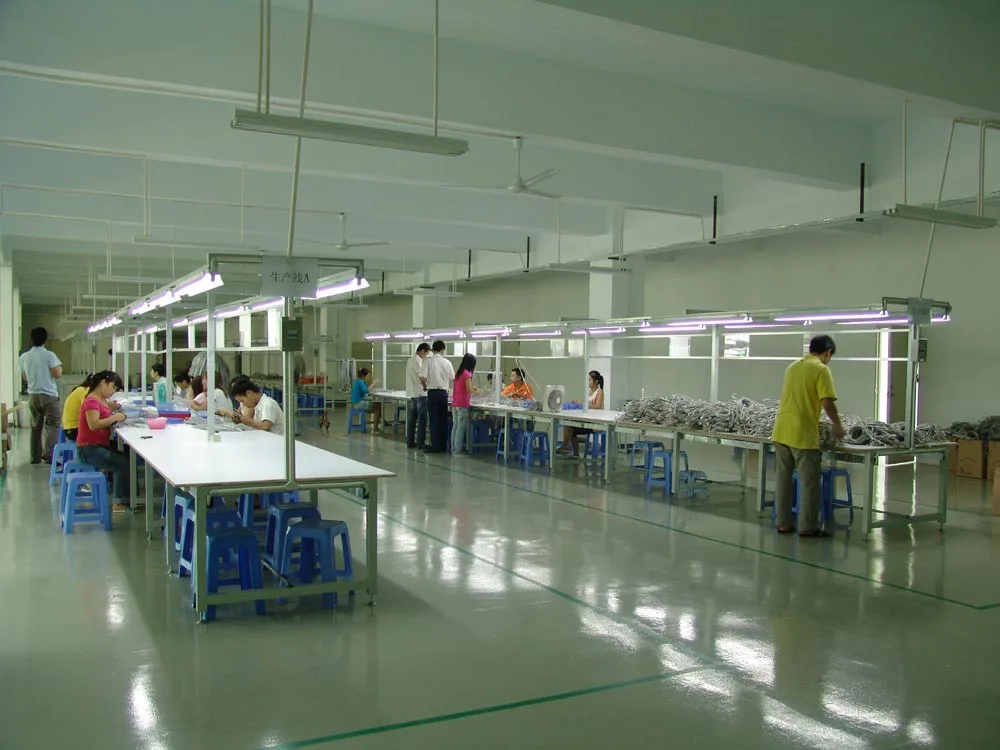

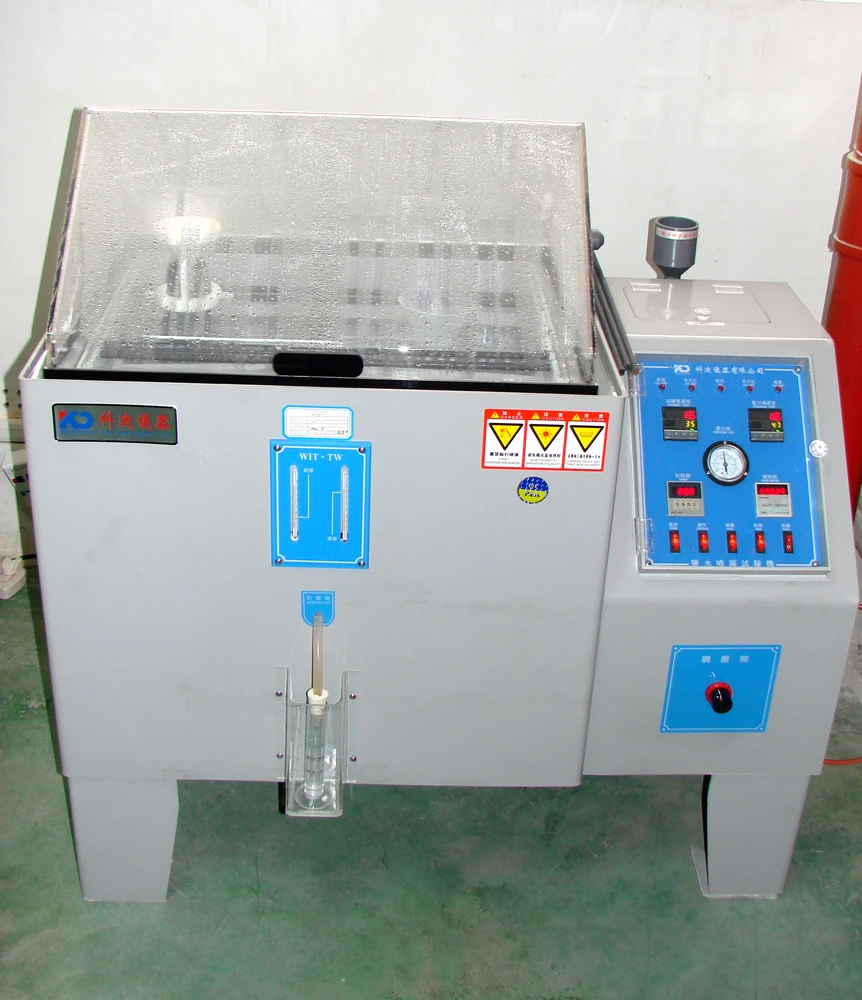

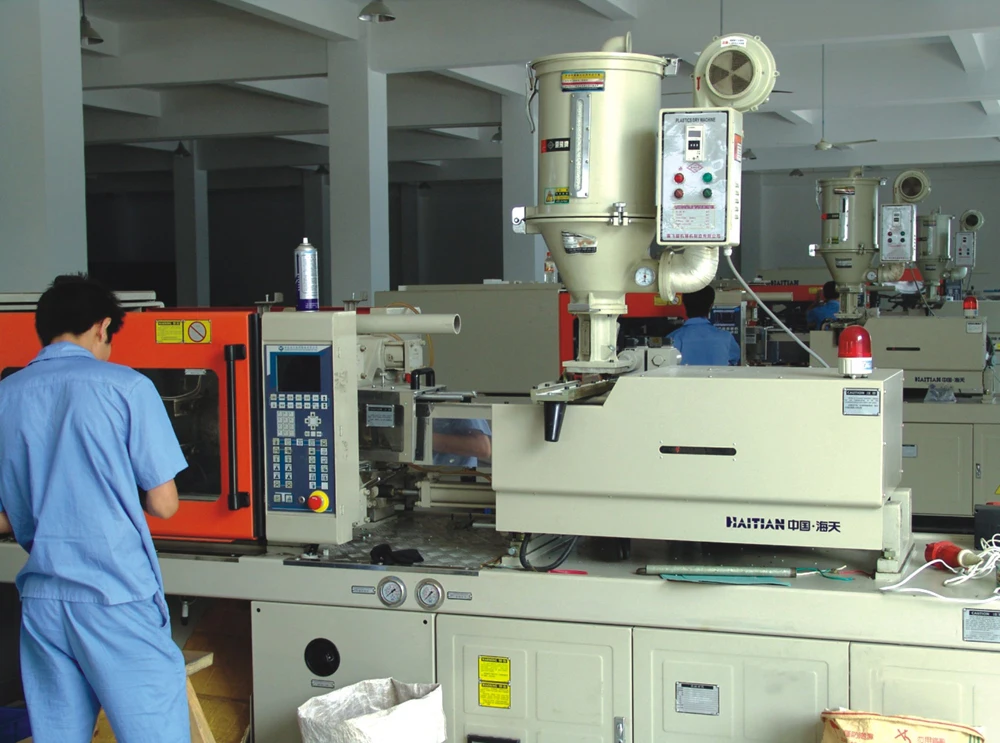

Our Factory

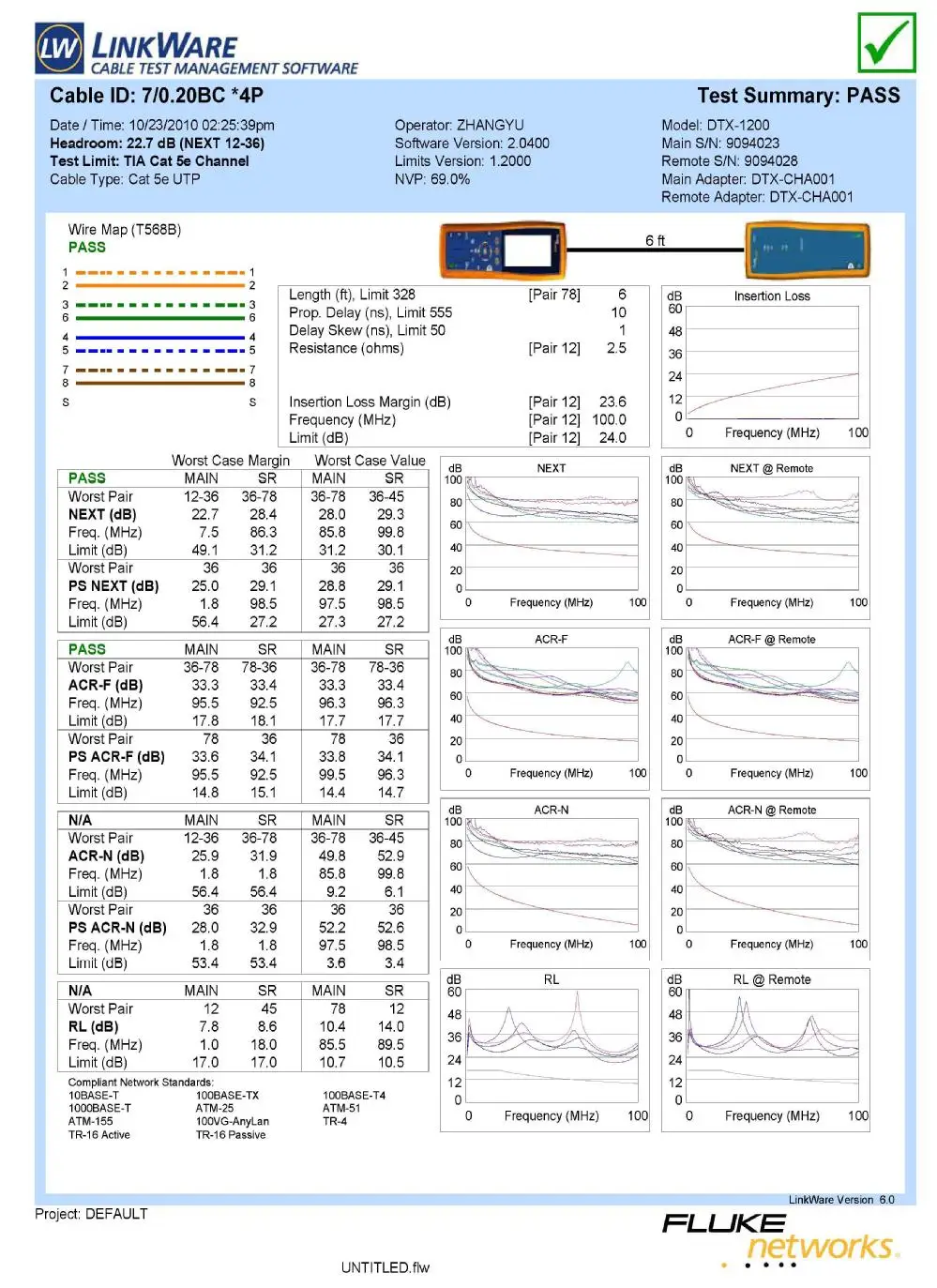

Certification(FlUKE TEST)

CAT5E UTP(0.20BC).jpg
