4Pair cat5e SFTP double shield braid solid network lan ethernet cable 305m for outdoor use

FOB Reference Price:Get Latest Price
$0.13 - $0.15 / Meter | 10000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Lulink or OEM
Model Number:
LK-SFO5CB241
Number of Conductors:
8
Type:
Cat 5e
Conductor:
BC,CCA
Cores:
8PIN
Jacket:
PVC
AGW:
24awg
OEM/ODM:
Acceptable
Supply Ability
Supply Ability:
50000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
Outer Box:Cardboard
Port
Guangzhou

8P8C rj45 cat7 SFTP patch cable 22awg double braid shield solid network cable

Product Description

Product Features:

1. 4 pairs 100 Cat.5E cable, adopt 23AWG bare copper to be the center conduction, PE
to be the dielectric and fireproof material to be the jacket.
2. This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.
3. All the electrical characteristics are even exceed the lastest Cat.5E standards of
ISO/IEC. The “+” typer inner frame in the center ensures NEXT capacity and
reasonable minimum bend radius.
4. LSZH: means “Low somke zero halogen”, which is the symbol of environmental
protection.



Electronics Characteristics:

1. Impedance: 100±15
2. Return resisitance: 9.4/100m
3. Unbalance resisitance: ≤5%
4. Static electric capacity: 51pF/m 1KHz
5. Unbalance capacity: 73.2pF/100m
6. Roted communicate rate: 65%



PHYSICAL CHARACTERISTICS:
1. Copper diameter: 23AWG
2. Impedance: 100±15
3. Outer diameter: 6.1±0.2mm
4. Minimum bend radius: 6-8×OD
5. Maximum pulling tension: ≤10
6. Jacket material: PVC or LSZH
7. Roted temperature: -20
~60℃

8. Packing: Carton or Axles



APPLICATION:
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring;
4. ATM155/ATM622 etc;



STANDARD:

1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1



Product photos:

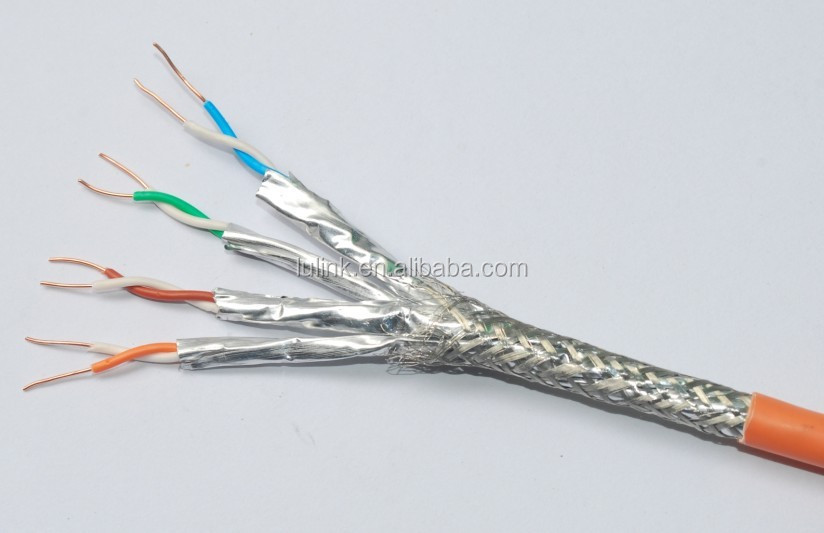

outdoor cat5e sftp.jpg

cat6 UTP .jpg

Related Products Recommendation:


  CAT7  CABLE.jpg



Packaging & Shipping

 Packing:

Outer Box: Cardboard suits for all kinds of transpotation

Shipping:



Our Services

1)Reply your enquiry within 24 working hours;

2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.



Sales Condition

1. Terms of payment: T/T, Western union,money gram or Paypal.

2. Delivery time: 3 to 15 working days after received the payment.

3. Shipping methods: By express, air or sea (According to the client's request).
